| Product Details | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Code | AVT-WS850 | ||||||||||

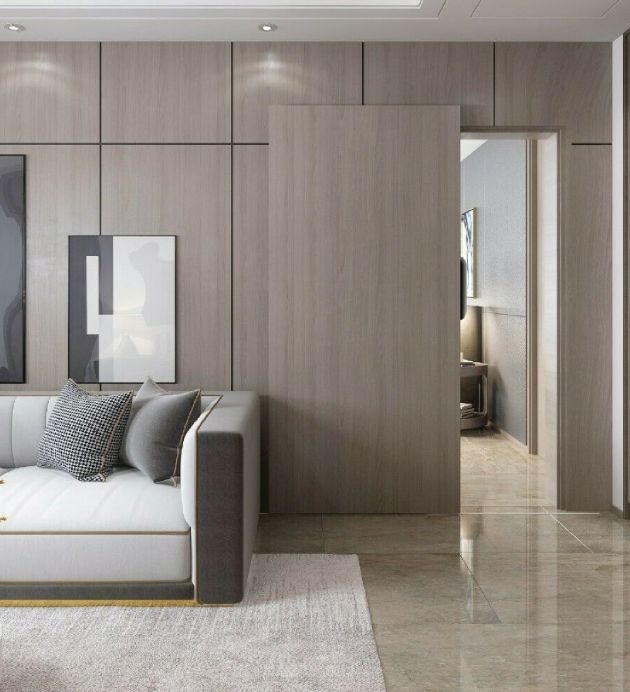

| Application | Wooden linkage sliding doors (aluminium option available) | ||||||||||
| Feature | Stack multiple sliding doors into one compact section; ability to stack into a hidden panel within the wall or within one fixed section; ensure smooth linkage between doors for seamless operation. | ||||||||||
| Loading Capacity | 60kg | ||||||||||
| Door Thickness | 35-50mm | ||||||||||
| Door Size Requirement | 580 < Single Door Width < 1200mm | ||||||||||
| Accessories | Qty (2 Linkage Doors) | Qty (4 Linkage Doors) | Drawing |
|---|---|---|---|
| Rollers | 2 | 4 |  |
| Rollers with damper | 2 | 2 |  |
| Door stopper | 1 | 2 |  |
| Damper stopper | 2 | 2 |  |
| Long gearing wheel | 1 | 2 |  |
| Short gearing wheel | 1 | 2 |  |
| Top installed hanging plate | 1 | 1 |  |
| Down track fixed block | 8 | 8 |  |
| Belt fixing hanging plate | 1 | 1 |  |
| Top installed fixing part | 1 | 1 |  |
| Belt connector | 1 | 2 |  |
| Linkage down guider | 1 | 2 |  |
| Down guider | 1 | 1 |  |
| Belt fixing part | 0 | 1 |  |
