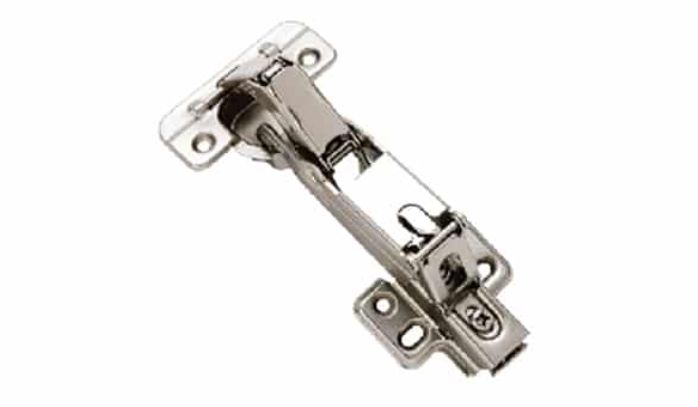

| Product Details | |
|---|---|
| Open angle | 165° |
| Depth of hinge cup | 12mm |
| Diameter of hinge cup | 35mm |
| Door Adjustment | |
|---|---|
| Door dimension | 3mm-7mm |
| Door thickness | 16mm-21mm |
| Hinge material | Steel |
| Full Overlay | Half Overlay | Inset |
|---|---|---|
 Product Code: AVT-N165A | Product Code: AT-N165B | Product Code: AVT-N165C |
Minimum Gap (Lmin)
| L Min | T = 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | K = 3 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0.1 | 0.2 | 0.2 |
For full cover and half cover hinge
Minimum Gap (Lmin)
Product Dimension Details
| L Min | T = 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | K = 3 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0.1 | 0.2 | 0.2 |
Overlay: D
| D | K = 3 | 4 | 5 | 6 | H = 0 | 4 | 3 | 2 | 1 |
|---|---|---|---|---|
| 2 | 6 | 5 | 4 | 3 |
| 4 | 8 | 7 | 6 | 5 |
Reveal: F
| D | K = 3 | 4 | 5 | 6 | H = 0 | 4 | 3 | 2 | 1 |
|---|---|---|---|---|
| 2 | 6 | 5 | 4 | 3 |
| 4 | 8 | 7 | 6 | 5 |
Overlay: D
| D | K = 3 | 4 | 5 | 6 | H = 0 | 4 | 3 | 2 | 1 |
|---|---|---|---|---|
| 2 | 6 | 5 | 4 | 3 |
| 4 | 8 | 7 | 6 | 5 |
