| Product Details | |
|---|---|

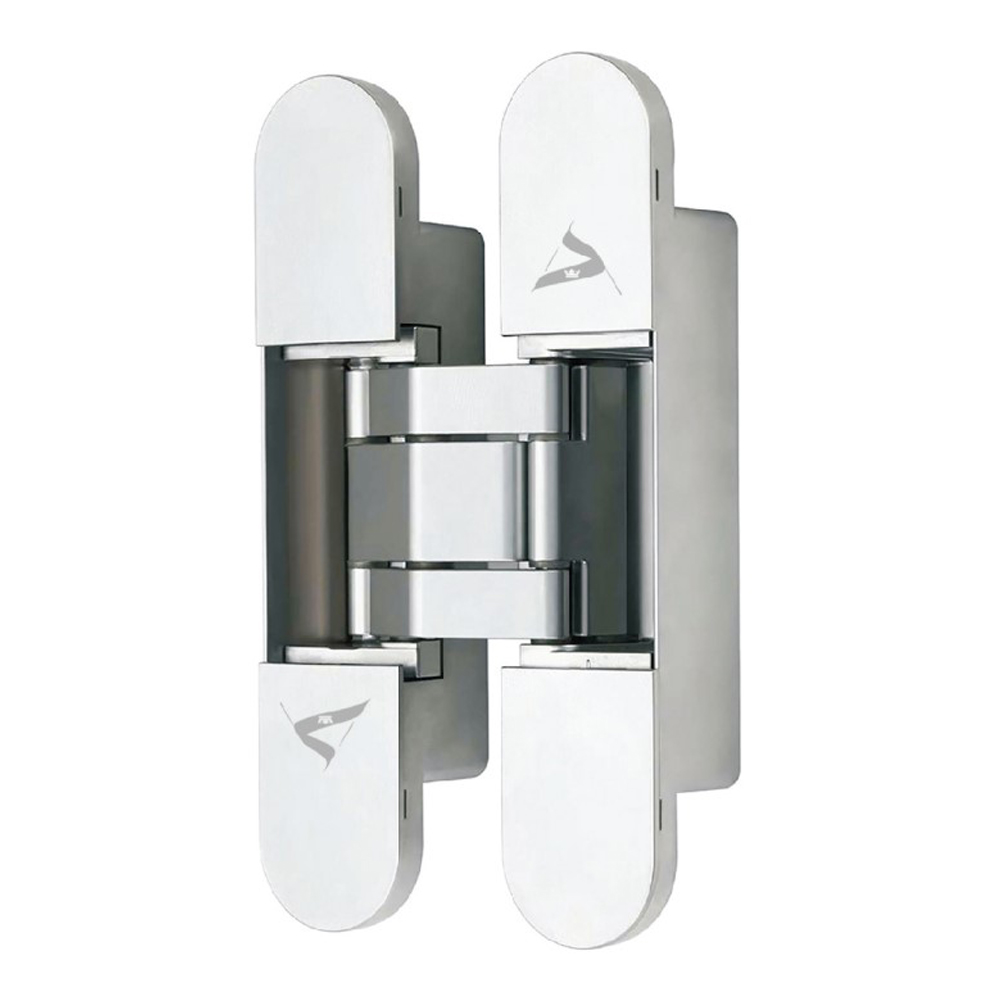

| Application | The concealed hinges can be installed on a variety of wooden doors/frames. The hinge is hidden by being recessed into the substrate. |

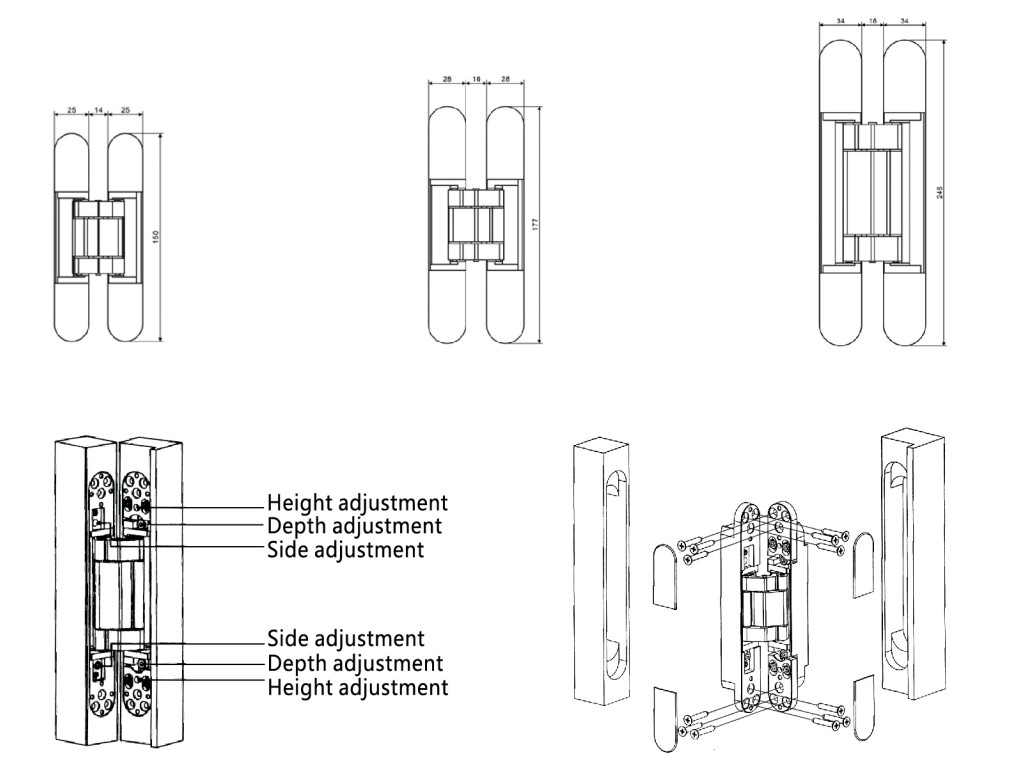

| Features | Matching cover caps ensures that no screws are visible allowing for a seamless and clean design aesthetic. Its built in 3D adjustability allows for minor adjustments without having to remove the door. |
| Material | Zinc and Aluminium Alloy |
| Finish | Silver grey, Matte black, Champagne gold |
| Product Code | Applicable Door Thickness | Maximum weight capacity (2 hinges) |
|---|---|---|
| AVT-CH180-20X2 | 35mm | 40kg |
| AVT-CH180-40X2 | 40mm | 80kg |
| AVT-CH180-60X2 | 45mm | 120kg |
