| Product Details | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Code | AVT-WS110 | ||||||||||
| Application | Completely concealed door alignment fitting that prevents doors from sagging and sinking | ||||||||||
| Feature | Slotted groove installation method at the back of the door provides a seamless front facia support; High strength steel provides strong and stable door alignment; Multiple alignment fittings can be applied to wider doors. | ||||||||||
| Door Thickness | ≥ 15mm | ||||||||||
| Loading Capacity | Single Door Weight using one alignment ≤ 40 kg Single Door Weight using two alignments ≤ 80 kg | ||||||||||
| Door Size Requirments | Single Door Width ≤ 600 mm; 1000 ≤ Single Door Height ≤ 2400 mm | ||||||||||

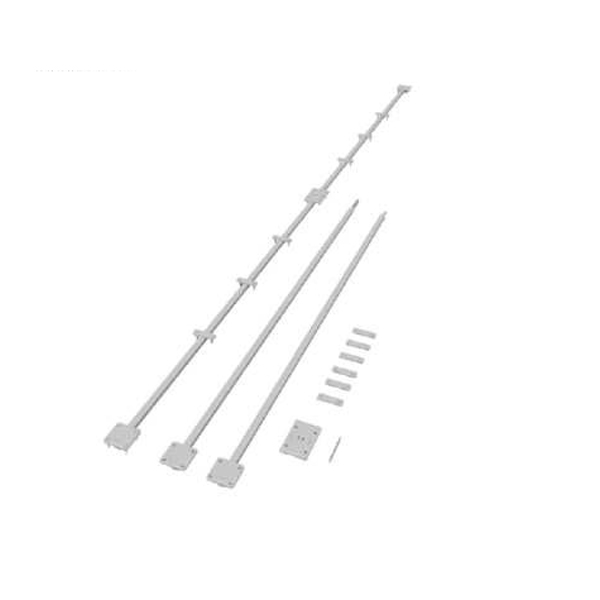

Fittings set
| Accessories | Qty | Drawing |
|---|---|---|
| Left straightener | 1 |  |
| Right straightener | 1 |  |
| Regulation plate | 1 |  |
| Connecting plate | 6 |  |
| Decorative cover | 1 |  |
| Iron rod | 1 |  |
Installation

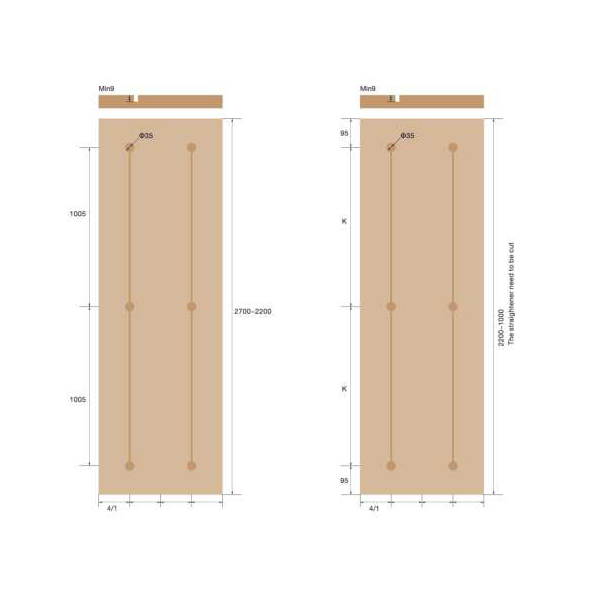

Slotting dimension requirement: Use two sets when door width is more than 600mm.

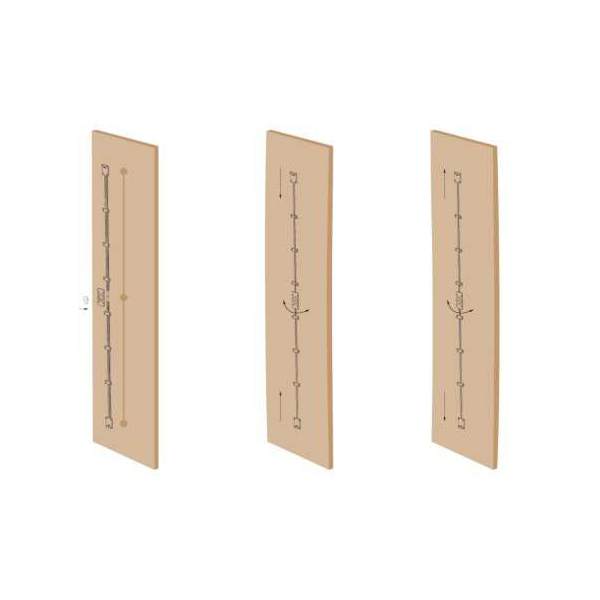

Instruction for alignment
