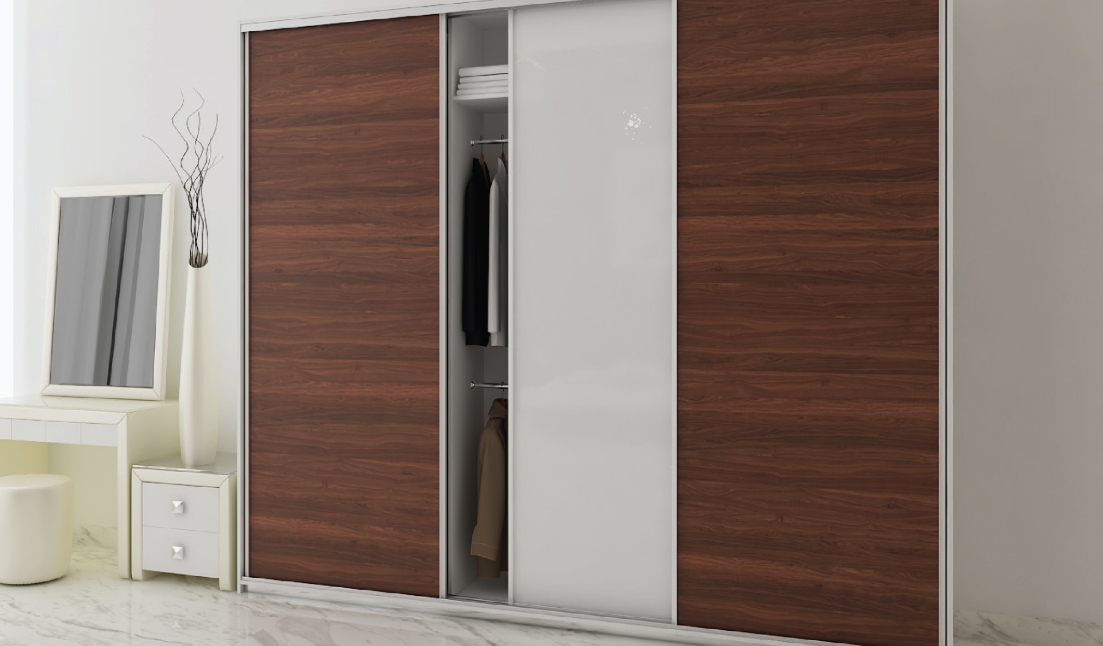

External Aluminum Frame Sliding Door System – 60 kg

Product Details
Product Code	AVT-WS370
Application	Sliding door system for aluminum door frames
Feature	Easy installation; Damper with functionality of anti-jump and anti-decoupling (automatic hook coupling)
Loading Capacity	Light (5-15 kg/door), Standard (15-25 kg/door) and Heavy dampers (25-50 kg/door) available for different loading capacity requirements
Door Thickness	Up to 32mm
Door Size Requirement	400 < Single Soft Closing Width < 200mm; Height < 2500mm 650 < Double Soft Closing Width < 1200mm; Height < 2500mm

Accessories	2 Damper (One Door)	4 Damper (One Door)	Accessories	2 Damper (One Door)	4 Damper (One Door)

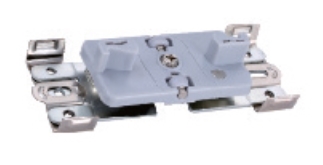

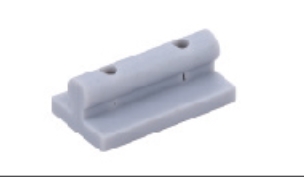

Down runner	2	2	T shape plastic part	1	2

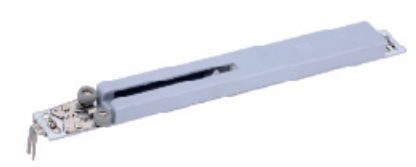

Upper runner damper	1	2	Upper runner	1	0
Toggle Member	1	2	Milling tail screw	2	4
ST4*10 Cross raised pan head tapping screws	1	2	ST6*30 Hex Tapping screw	4	4

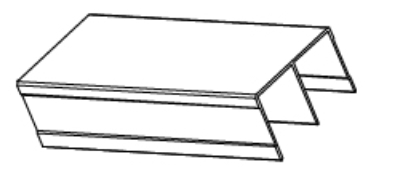

Down rail	1	1	Upper rail	1	1

Sliding door system accessories AVT-WS370B

Accessories	2 Damper (One Door)	Accessories	2 Damper (One Door)
Down runner	2	T shape plastic part	2
Upper runner damper	1	Upper runner	1
Toggle Member	1	Milling tail screw	2
ST4*10 Cross raised pan head tapping screws	2	ST6*30 Hex Tapping screw	4
Down rail	1	Upper rail	1
