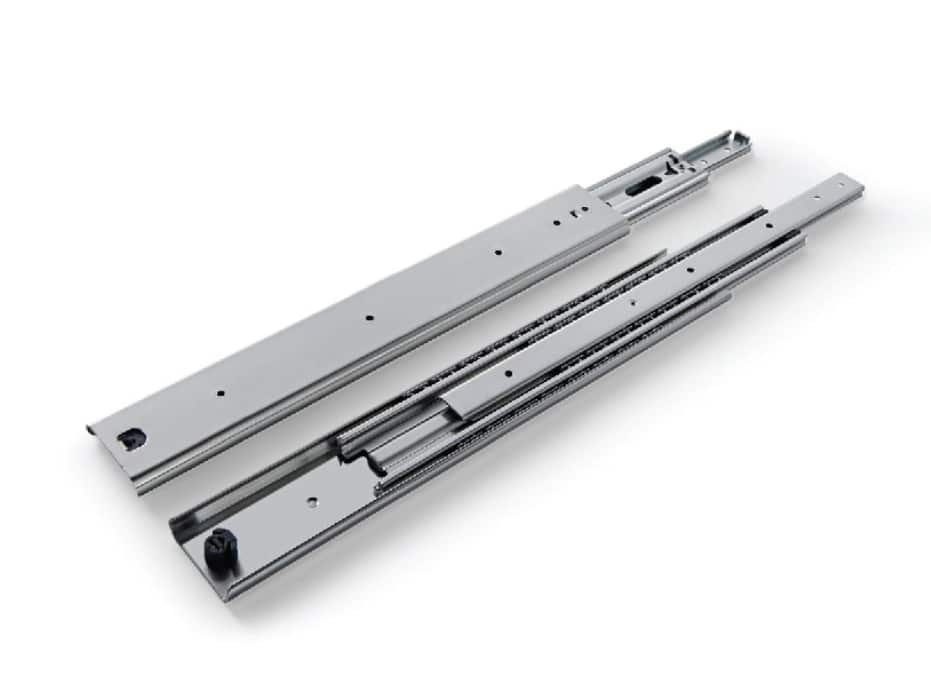

| Product Details | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Application | File cabinets, kitchen carbinets, storage cabinets, display cabinets, tool boxes and other high-load wooden and steel drawers. | ||||||||||
| Feature | Drawers and cabinet wall can be separately mounted. The drawers are convenient to remove and can be locked when travelling to prevent the drawers from sliding. | ||||||||||
| Loading capacity | 70-125kg | ||||||||||
| Finishes | Silver Grey | ||||||||||
| Size | 250mm-1200mm | ||||||||||
| Soft closing time | N/A | ||||||||||
| Product Code | Length | Load capacity |
|---|---|---|
| AVTHD-71NSF-250 | 250mm | 80kg |
| AVTHD-71NSF-300 | 300mm | 90kg |
| AVTHD-71NSF-350 | 350mm | 95kg |
| AVTHD-71NSF-400 | 400mm | 100kg |
| AVTHD-71NSF-450 | 450mm | 110kg |
| AVTHD-71NSF-500 | 500mm | 120kg |
| AVTHD-71NSF-550 | 550mm | 125kg |
| AVTHD-71NSF-600 | 600mm | 125kg |
| AVTHD-71NSF-650 | 650mm | 120kg |
| AVTHD-71NSF-700 | 700mm | 115kg |
| AVTHD-71NSF-750 | 750mm | 110kg |
| AVTHD-71NSF-800 | 800mm | 105kg |
| AVTHD-71NSF-850 | 850mm | 100kg |
| AVTHD-71NSF-900 | 900mm | 95kg |
| AVTHD-71NSF-950 | 950mm | 90kg |
| AVTHD-71NSF-1000 | 1000mm | 85kg |
| AVTHD-71NSF-1050 | 1050mm | 80kg |
| AVTHD-71NSF-1100 | 1100mm | 75kg |
| AVTHD-71NSF-1150 | 1150mm | 70kg |
| AVTHD-71NSF-1200 | 1200mm | 70kg |

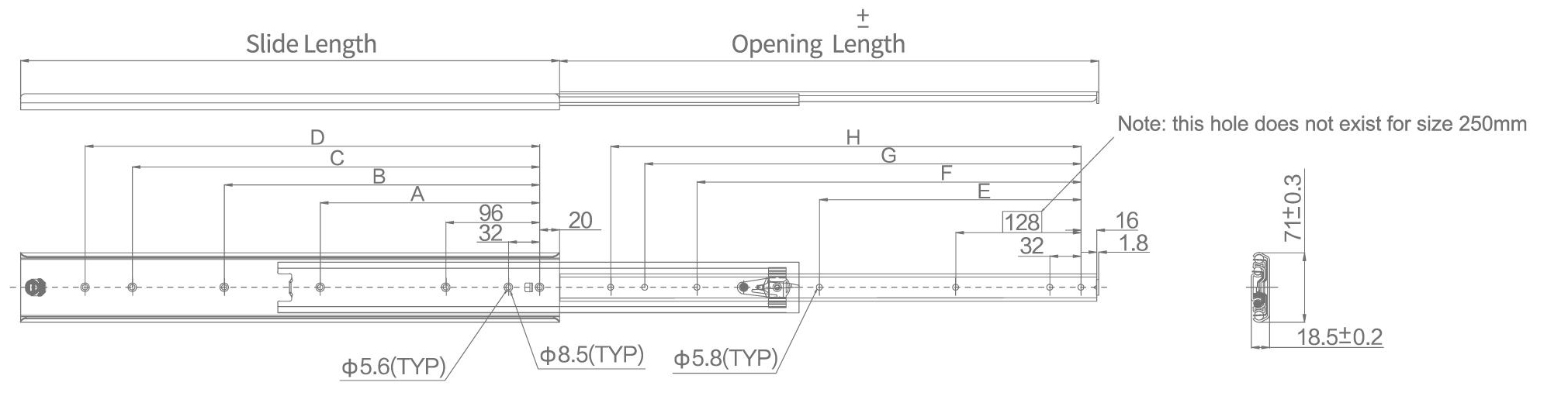

(mm) Hole Spacing
| A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|
| 192 | 192 | ||||||
| 160 | 224 | 192 | 256 | ||||
| 192 | 288 | 224 | 288 | ||||
| 192 | 320 | 256 | 352 | ||||
| 224 | 352 | 288 | 384 | ||||
| 224 | 384 | 192 | 320 | 448 | |||
| 224 | 384 | 480 | 224 | 384 | 480 | ||
| 224 | 384 | 512 | 224 | 384 | 512 | ||
| 224 | 384 | 576 | 224 | 384 | 576 | ||
| 256 | 416 | 608 | 256 | 416 | 608 | 640 | |
| 256 | 448 | 672 | 256 | 448 | 672 | 704 | |
| 288 | 480 | 704 | 288 | 480 | 704 | 736 | |
| 288 | 512 | 768 | 288 | 512 | 768 | 800 | |
| 320 | 576 | 832 | 320 | 576 | 768 | 832 | |
| 320 | 576 | 864 | 320 | 576 | 864 | 896 | |
| 320 | 576 | 768 | 928 | 320 | 576 | 768 | 928 |
| 320 | 576 | 768 | 960 | 320 | 608 | 768 | 992 |
| 320 | 576 | 768 | 1024 | 320 | 608 | 768 | 1024 |
| 320 | 576 | 832 | 1088 | 320 | 640 | 832 | 1088 |
| 320 | 576 | 832 | 1120 | 320 | 640 | 896 | 1120 |
Specification
