| Application | Bank ATM machines, limousines, large storage cabinets, vehicle-mounted tool boxes, etc. | ||||||||||

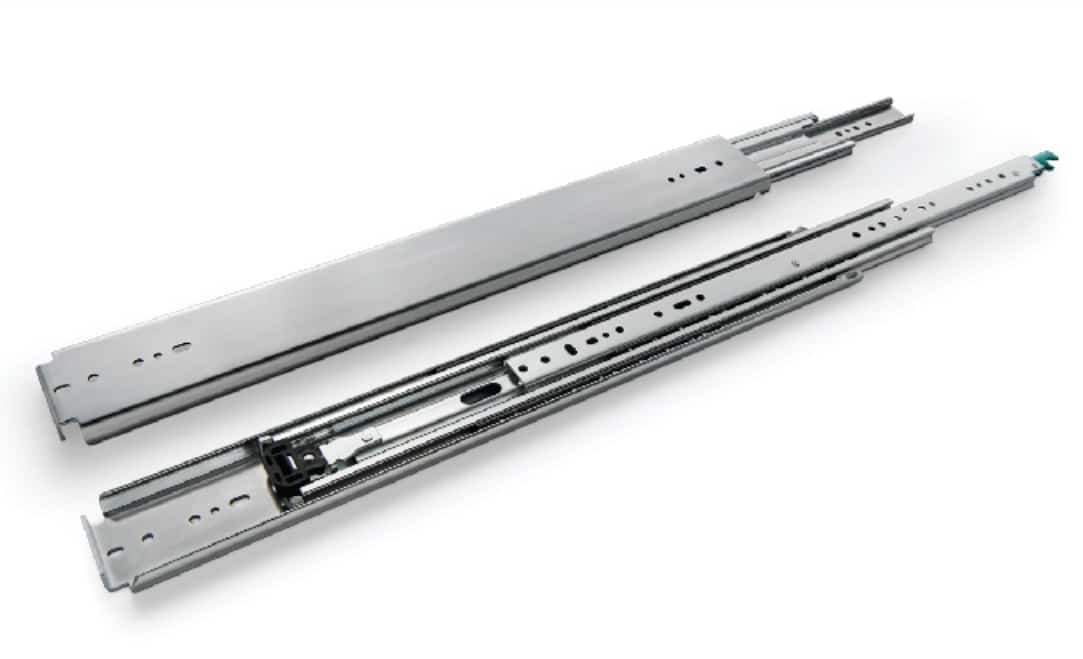

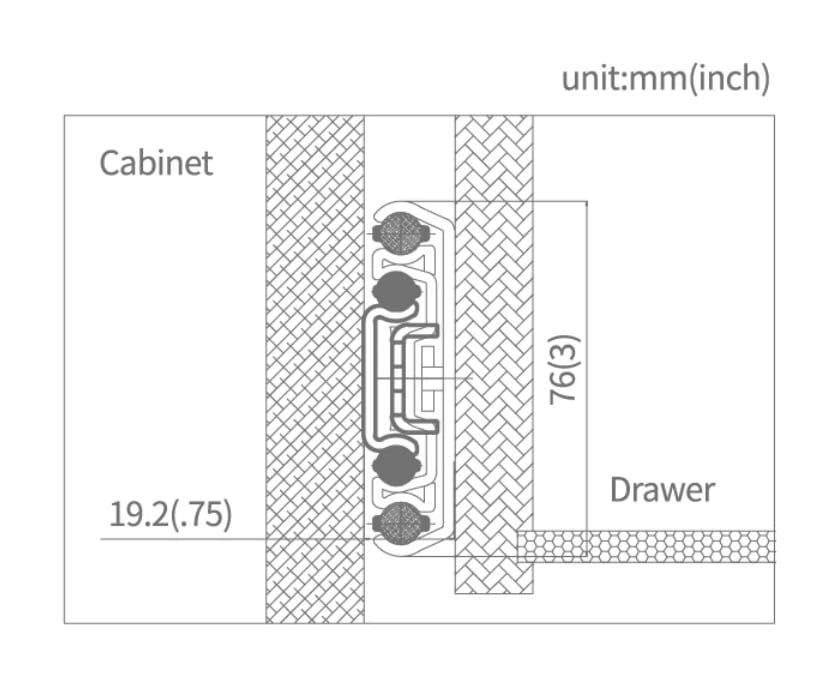

| Feature | To be mounted with hooks, trays are convenient to remove, latches at the end can prevent the trays from slipping. Inner, intermediate and outer guide rails can interlock to increase stability of the pulled part. | ||||||||||
| Loading capacity | 120-180kg | ||||||||||
| Finishes | Silver Grey | ||||||||||
| Size | 250mm-1200mm | ||||||||||
| Soft closing time | N/A | ||||||||||
| Product Code | Length | Load capacity |
|---|---|---|
| AVTHD-76NSF-250 | 250mm | 140kg |
| AVTHD-76NSF-300 | 300mm | 150kg |
| AVTHD-76NSF-350 | 350mm | 160kg |
| AVTHD-76NSF-400 | 400mm | 170kg |
| AVTHD-76NSF-450 | 450mm | 175kg |
| AVTHD-76NSF-500 | 500mm | 180kg |
| AVTHD-76NSF-550 | 550mm | 180kg |
| AVTHD-76NSF-600 | 600mm | 180kg |
| AVTHD-76NSF-650 | 650mm | 175kg |
| AVTHD-76NSF-700 | 700mm | 170kg |
| AVTHD-76NSF-750 | 750mm | 165kg |
| AVTHD-76NSF-800 | 800mm | 160kg |
| AVTHD-76NSF-850 | 850mm | 155kg |
| AVTHD-76NSF-900 | 900mm | 150kg |
| AVTHD-76NSF-950 | 950mm | 145kg |
| AVTHD-76NSF-1000 | 1000mm | 140kg |
| AVTHD-76NSF-1050 | 1050mm | 135kg |
| AVTHD-76NSF-1100 | 1100mm | 130kg |
| AVTHD-76NSF-1150 | 1150mm | 125kg |
| AVTHD-76NSF-1200 | 1200mm | 120kg |

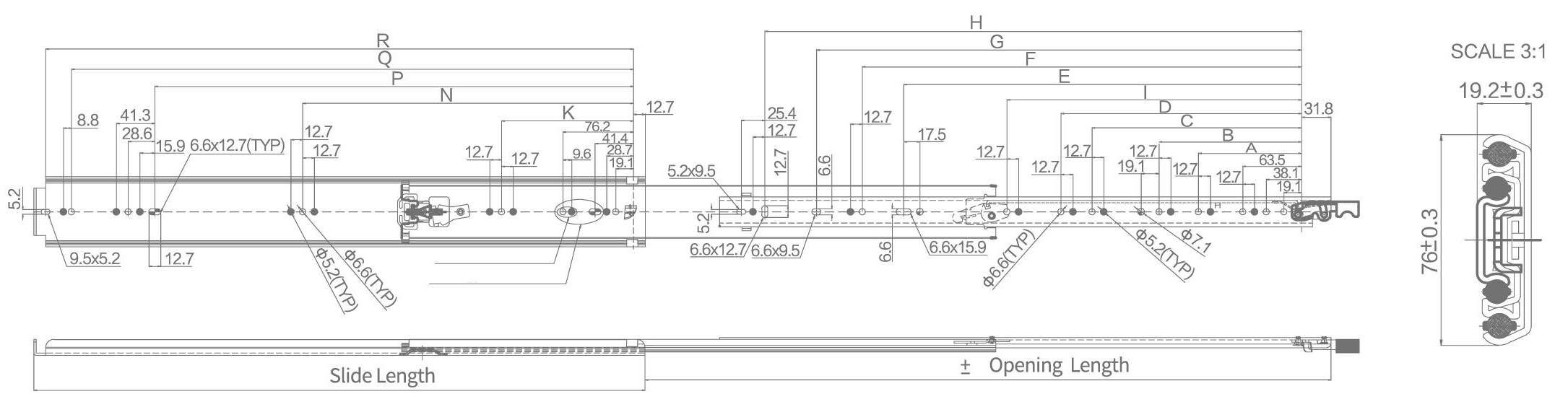

(mm) Hole Spacing
| A | B | C | D | E | F | G | H | I | K | N | P | Q | R |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 147.5 | 152.4 | 209.5 | 228.6 | ||||||||||
| 179.3 | 198.3 | 203.2 | 260.3 | 279.4 | |||||||||
| 204.1 | 230.1 | 249.1 | 254 | 311.1 | 330.2 | ||||||||
| 255.5 | 280.9 | 299.9 | 304.8 | 361.9 | 381 | ||||||||
| 127 | 306.3 | 331.7 | 350.7 | 355.6 | 412.7 | 431.8 | |||||||
| 127 | 357.1 | 382.5 | 401.5 | 406.4 | 463.5 | 482.6 | |||||||
| 127 | 190.5 | 347.7 | 407.9 | 433.3 | 452.3 | 457.2 | 514.3 | 533.4 | |||||
| 127 | 190.5 | 398.5 | 458.7 | 484.1 | 503.1 | 508 | 565.1 | 584.2 | |||||
| 127 | 190.5 | 449.3 | 509.5 | 534.9 | 553.9 | 558.8 | 615.9 | 635 | |||||
| 127 | 190.5 | 500.1 | 560.3 | 585.7 | 604.7 | 609.6 | 666.7 | 685.8 | |||||
| 127 | 190.5 | 550.9 | 611.1 | 636.5 | 655.5 | 234.9 | 501.6 | 660.4 | 717.5 | 736.6 | |||
| 127 | 190.5 | 601.7 | 661.9 | 687.3 | 706.3 | 234.9 | 552.4 | 711.2 | 768.3 | 787.4 | |||
| 127 | 190.5 | 652.5 | 712.7 | 738.1 | 757.1 | 234.9 | 603.2 | 762 | 819.1 | 838.2 | |||
| 127 | 190.5 | 520.7 | 703.3 | 763.5 | 788.9 | 807.9 | 234.9 | 654 | 812.8 | 869.9 | 889 | ||
| 127 | 190.5 | 520.7 | 754.1 | 814.3 | 839.7 | 858.7 | 234.9 | 704.8 | 863.8 | 920.7 | 939.5 | ||
| 127 | 190.5 | 368.3 | 804.9 | 865.1 | 890.5 | 909.5 | 234.9 | 755.6 | 914.1 | 971.5 | 990.6 | ||
| 127 | 190.5 | 368.3 | 855.7 | 915.9 | 914.3 | 960.3 | 825.5 | 234.9 | 806.4 | 965.2 | 1022.3 | 1041.4 | |
| 127 | 190.5 | 368.3 | 906.5 | 966.7 | 992.1 | 1011.1 | 825.5 | 234.9 | 857.2 | 1016 | 1073.1 | 1092.2 | |
| 127 | 190.5 | 368.3 | 957.3 | 1017.5 | 1042.5 | 1061.9 | 825.5 | 234.9 | 908 | 1066.8 | 1123.9 | 1143 | |
| 127 | 190.5 | 368.3 | 520.7 | 1008.1 | 1068.3 | 1093.7 | 1112.7 | 825.5 | 234.9 | 958.8 | 1117.6 | 1174.7 | 1193.8 |
