| Product Details | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Product code | AVT-SS-BFPDS | ||||||||||

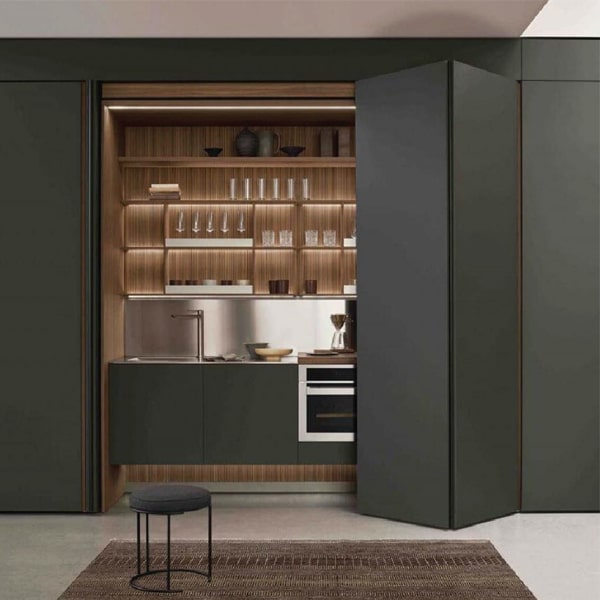

| Application | A double sliding door that, when fully open, disappears into a compartment in the adjacent wall. Used in offices, pantries, kitchens or any areas that require recessed shutters. | ||||||||||
| Feature | Both left and right hand side doors recess gently into a wall cavity; Used for architectural effect, or when there is no room for the swing of a hinged door; The bi-fold allows for two larger left or right hand side doors to be installed. | ||||||||||
| Loading Capacity | Maximum 60 kg per panel | ||||||||||
| Product Code | Specification(mm) | Cabinet Depth(mm) | Door Thickness(mm) |
|---|---|---|---|
| AVT-SS-BFPDS-470 | 800*2700 | ≥470 | 18 |
| AVT-SS-BFPDS-536 | 800*2700 | ≥536 | 18 |
| AVT-SS-BFPDS-600 | 800*2700 | ≥600 | 18 |
| Accessories | Qty left side for 2 doors | Qty right side for 2 doors | Qty for 4 doors total |
|---|---|---|---|
| Upper left guide rail | 1 pcs | - | 2 pcs |
| Lover left guide rail | 1 pcs | - | 2 pcs |
| Upper right guide rail | - | 1 pcs | 2 pcs |
| Lover left guide rail | - | 1 pcs | 2 pcs |
| guide rail installation seat | 4 pcs | 4 pcs | 8 pcs |
| Internal guide wheel | 2 pcs | 2 pcs | 4 pcs |
| External guide wheel | 2 pcs | 2 pcs | 4 pcs |
| Even the axis | 2 pcs | 2 pcs | 4 pcs |
| Synchronizing bar | 1 pcs | 1 pcs | 2 pcs |
| Long hair brush | 1 pcs | 1 pcs | 2 pcs |
| Short hair brush | 1 pcs | 1 pcs | 2 pcs |
| Short hair brush | 1 pcs | 1 pcs | 2 pcs |
| Fold table hinge | 4 pcs | 4 pcs | 8 pcs |
| Pendant component | 1 pcs | 1 pcs | 2 pcs |
