| Product Details | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Application | General home furniture or other drawer applications. | ||||||||||
| Feature | Full extension. Lever disconnect for drawer removal. Less noise at closing and opening. | ||||||||||
| Loading capacity | 45KG/99lbs | ||||||||||
| Material | Cold rolled steel | ||||||||||
| Finishes | Black spray, Zinc plated | ||||||||||
| Size | 250mm-550mm | ||||||||||
| Product Code | Normal Length | Set / ctn. |
|---|---|---|
| AVT450PT2-250 | 250mm | 15 |
| AVT450PT2-300 | 300mm | 15 |
| AVT450PT2-350 | 350mm | 15 |
| AVT450PT2-400 | 400mm | 15 |
| AVT450PT2-450 | 450mm | 15 |
| AVT450PT2-500 | 500mm | 15 |
| AVT450PT2-550 | 550mm | 15 |

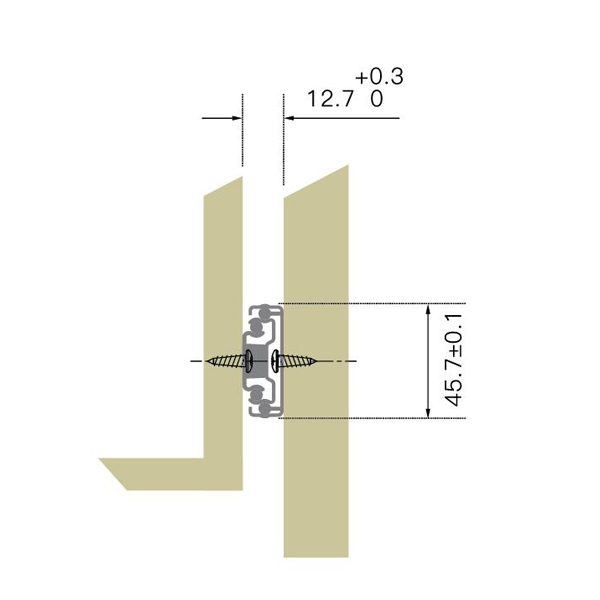

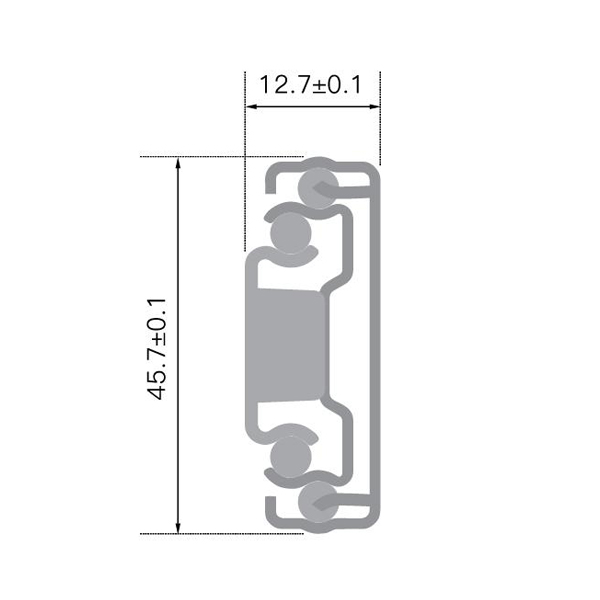

Installation Dimension (mm)
