| Product Details | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Application | General home furniture or other drawer applications. | ||||||||||

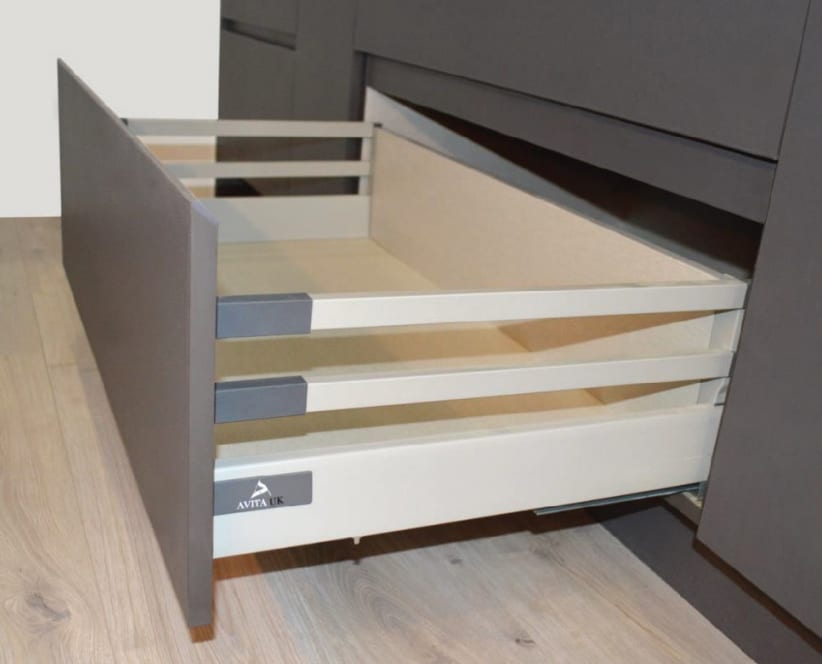

| Feature | Light and smooth concealed full extension soft closing system. Quick and easy assembly and dismantling of drawer. Integrated 3D front panel adjustment. Gallery available. | ||||||||||
| Loading capacity | 35KG/77lbs | ||||||||||
| Finishes | Silver Grey, White | ||||||||||
| Size | 270mm-550mm | ||||||||||
| Soft closing time | 1.2-1.8so | ||||||||||
| Opening force | 12-15N | ||||||||||
| Normal Length | Soft close drawer item No. | Single gallery with bracket | Double gallery with bracket | Set / ctn. |
|---|---|---|---|---|
| 270mm | AVT908TB84-270 | AV908-135KlT-2QLS/W-270 | AV908-199KlT-4QLS/W-270 | 10 |
| 300mm | AVT908TB84-300 | AV908-135KlT-2QLS/W-300 | AV908-199KlT-4QLS/W-300 | 10 |
| 350mm | AVT908TB84-350 | AV908-135KlT-2QLS/W-350 | AV908-199KlT-4QLS/W-350 | 10 |
| 400mm | AVT908TB84-400 | AV908-135KlT-2QLS/W-400 | AV908-199KlT-4QLS/W-400 | 10 |
| 450mm | AVT908TB84-450 | AV908-135KlT-2QLS/W-450 | AV908-199KlT-4QLS/W-450 | 10 |
| 500mm | AVT908TB84-500 | AV908-135KlT-2QLS/W-500 | AV908-199KlT-4QLS/W-500 | 10 |
| 550mm | AVT908TB84-550 | AV908-135KlT-2QLS/W-550 | AV908-199KlT-4QLS/W-550 | 10 |
The Basic Components
Sides Industrial Package Pre-zinc Steel
Drawer sides Industrial Package
Back Fixing-brackets left/right
Front Fixing-Brackets
Screw

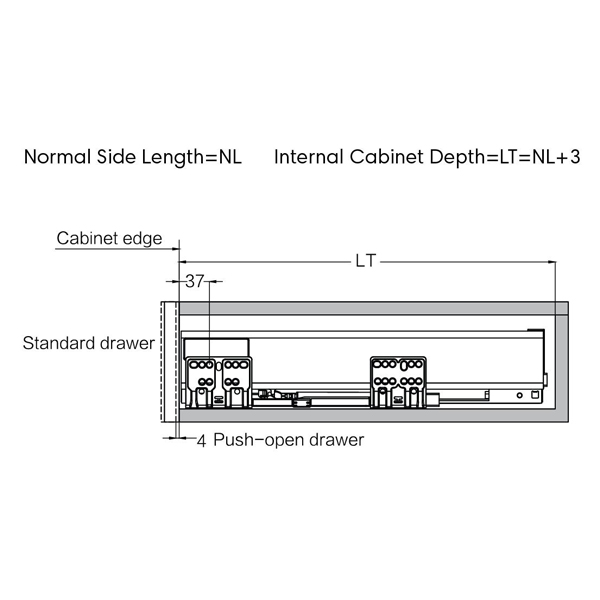

Installation Dimensions (mm)

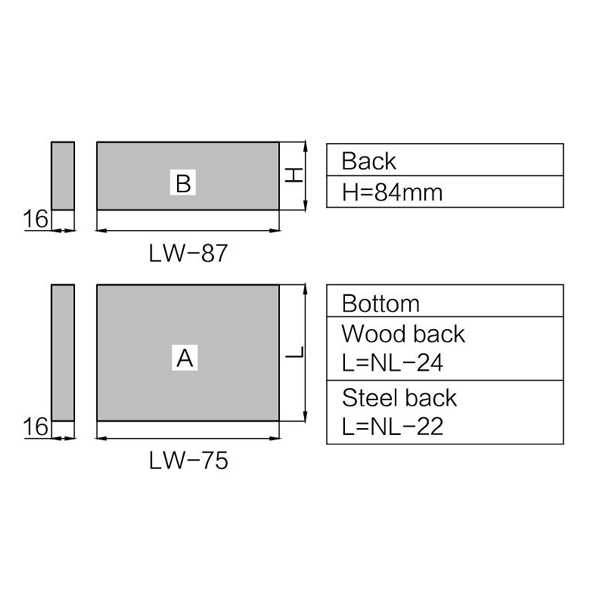

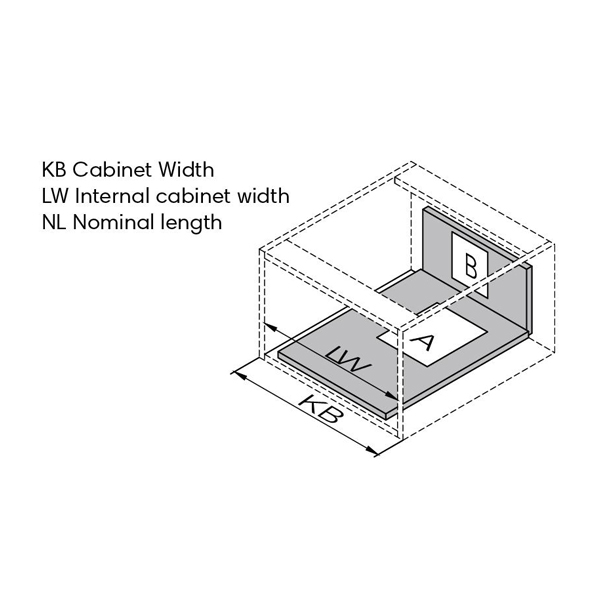

Drawer Installation Dimensions (mm)

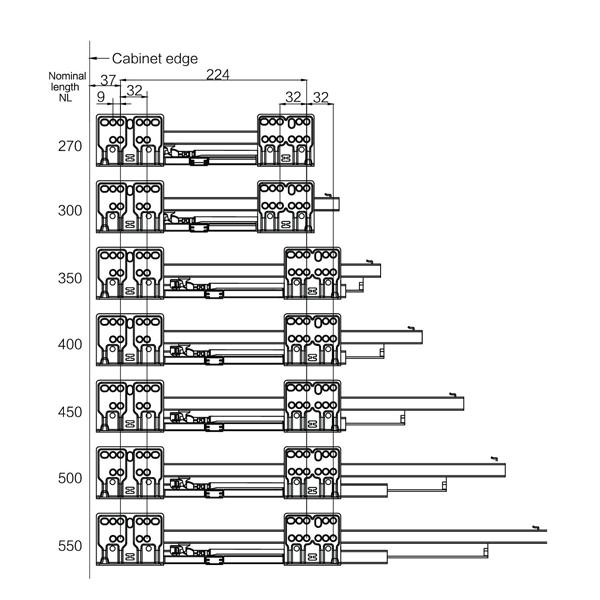

Screw Positions of the Sides (mm)
Installation Dimensions (mm)

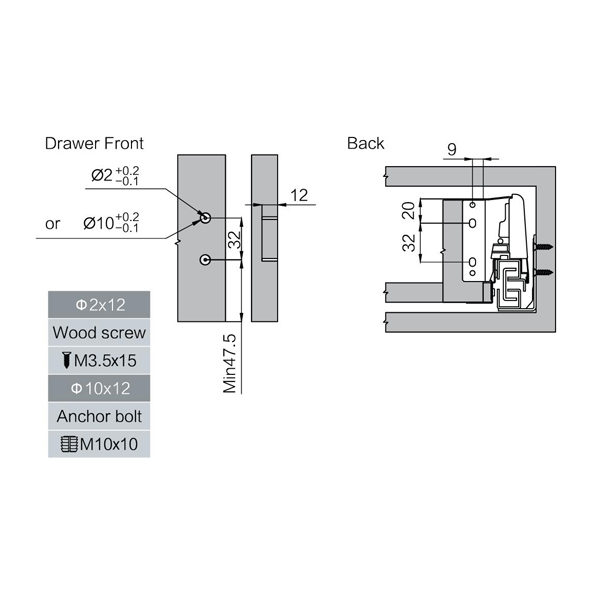

Screw Positions of the Sides (mm)
Screw Positions of the Sides (mm)
