| Product Details | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Application | General home furniture or other drawer applications. | ||||||||||
| Feature | Light and smooth soft closing system. Quick and easy assembly and dismantling of drawer. | ||||||||||
| Loading capacity | 35KG/77lbs | ||||||||||
| Finishes | Silver Grey | ||||||||||
| Size | 250mm-600mm | ||||||||||
| Opening force | 12-15N | ||||||||||
| Product Code | Normal Length | Set / ctn. |
|---|---|---|
| AVT708SF2-250 | 250mm | 10 |
| AVT708SF2-300 | 300mm | 10 |
| AVT708SF2-350 | 350mm | 10 |
| AVT708SF2-400 | 400mm | 10 |
| AVT708SF2-450 | 450mm | 10 |
| AVT708SF2-500 | 500mm | 10 |
| AVT708SF2-550 | 550mm | 10 |
| AVT708SF2-600 | 600mm | 10 |

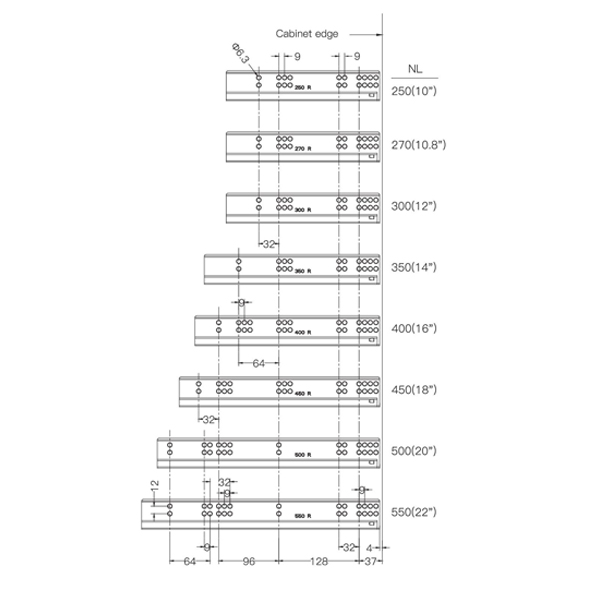

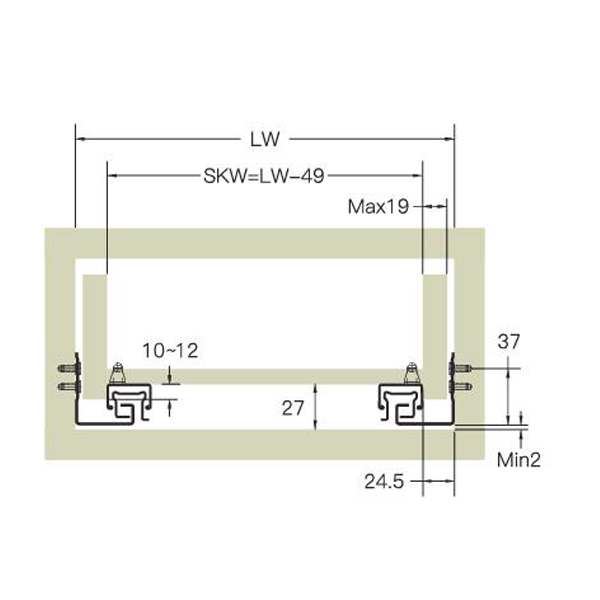

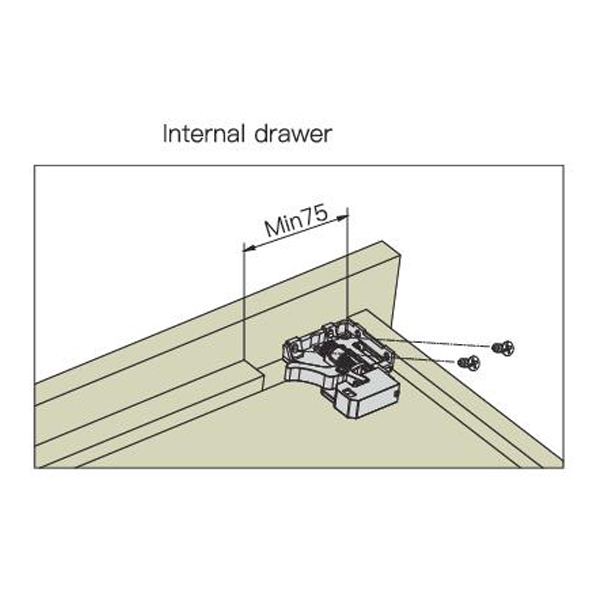

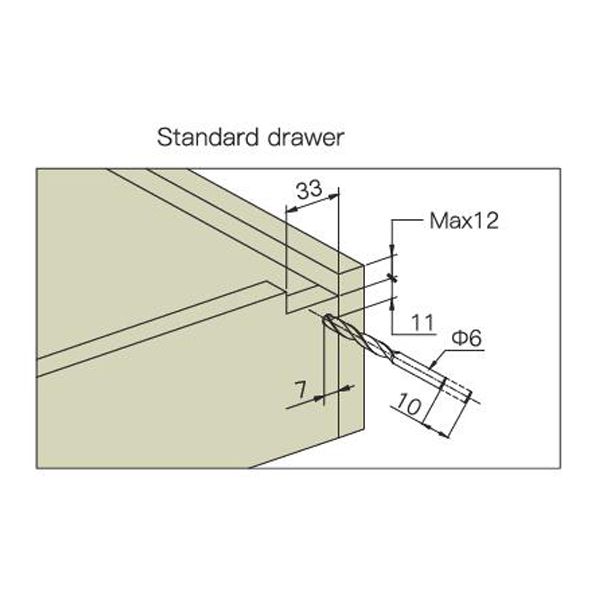

Installation Dimension (mm)
