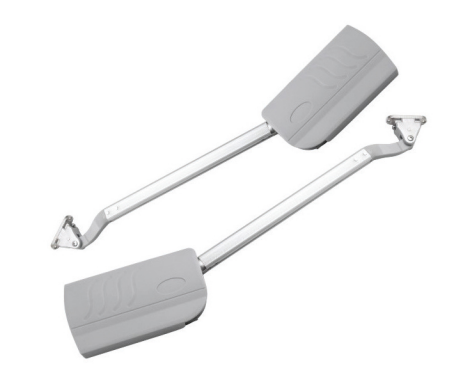

Product Details
| Product code | AYT-TC-BFL |
| Material | Zinc alloy |
| Finish | Nickel plated, chrome plated |

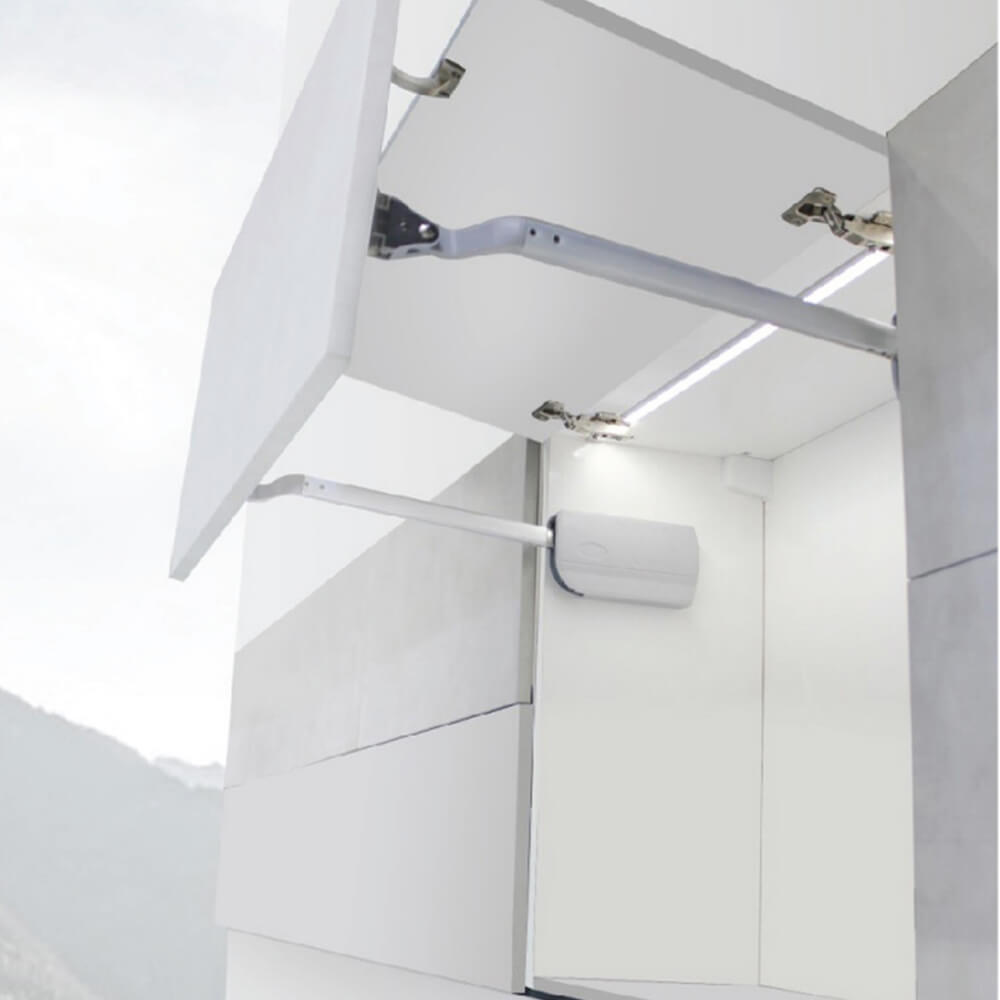

| Function | Supporting cabinet doors |
| Product Code | Weight Type | Qty (pcs) | Cabinet Size (mm) | Door Weight (kg) |
|---|---|---|---|---|
| AVT-TC-BFL | Heavy | 2 | W(600-800)*H(700-850) | 7 - 8 |
Reference Data
| H(mm) | 600 | 650 | 700 | 750 | 800 | 850 | 900 | 950 | 1000 |
| A(mm) | 100 | 150 | 100 | 120 | 200 | 250 | 200 | 250 | 250 |
| B(mm) | 163 | 188 | 213 | 208 | 263 | 288 | 263 | 288 | 313 |
| C(mm) | 200 | 200 | 300 | 300 | 300 | 300 | 350 | 350 | 400 |

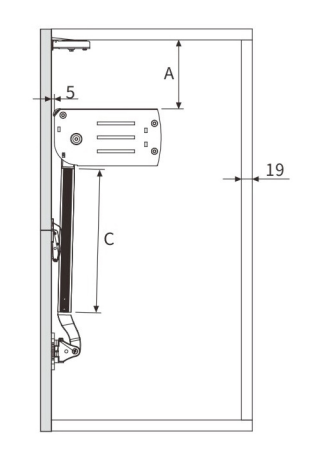

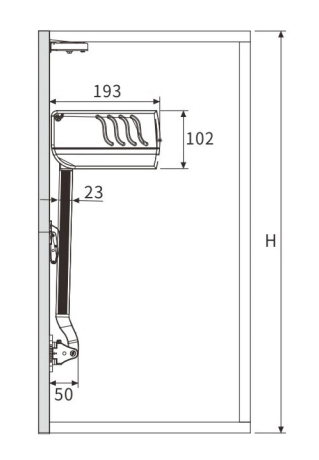

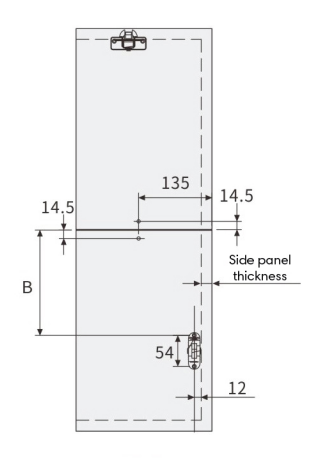

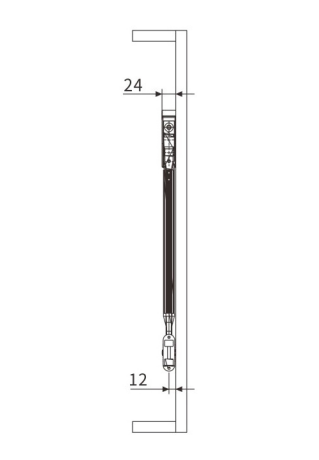

Installation Dimensions (mm)
